EAS Security System and 58Khz DR label
Long detection EAS security system
Description
● High quality ABS meterial
● With super detection range with the DR labels, it reaches 900-1000mm protection range single side with the DR labels. And the detection range with the AM hard tags can reach 1500-1600mm single side.
● It has strong adaptability to the environment and can resist elevator interference
●It can be debugged through the remote control
Specification
Material | ABS plastic |

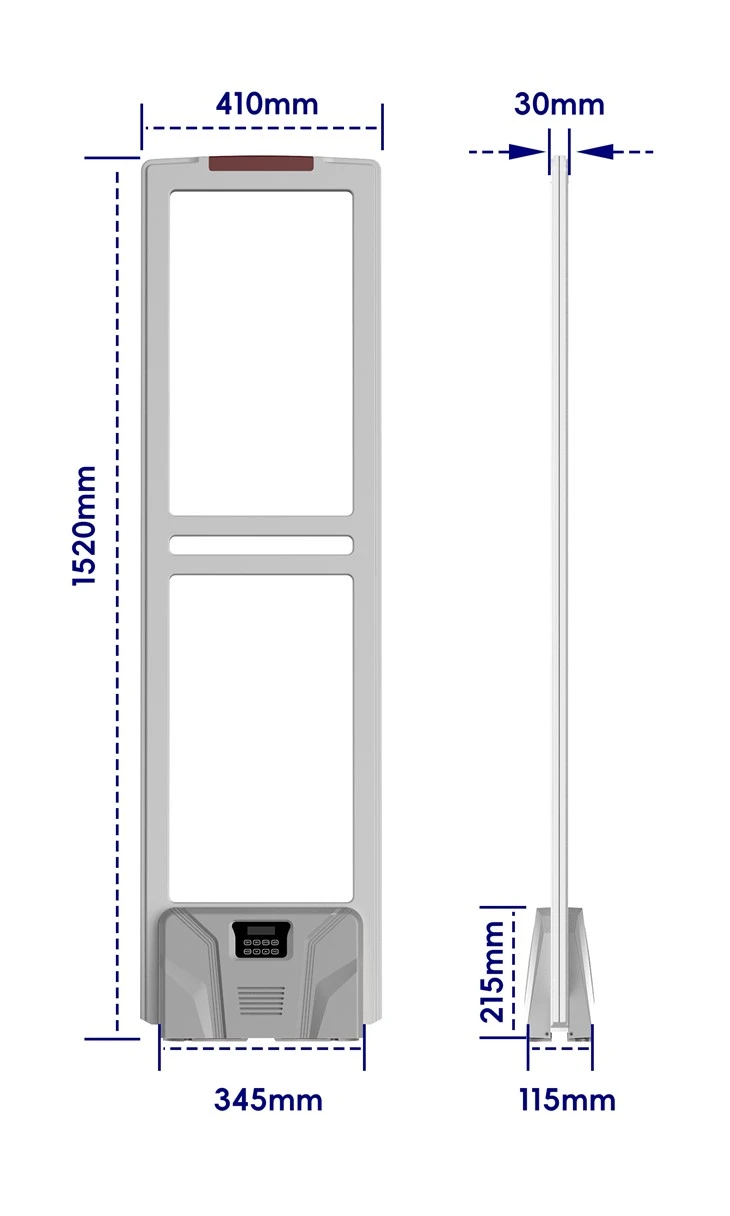

Size: | 1520*410*30mm |
Frequency: | 58kHz |
Antenna weight: | Master:6KG Slave:4.5KG |
Emission current: | 8-16Ao-p |
Currency: | 110-120VAc/220-240V |
Power Fuse: | 3.15/5.0A |
Protection Range: (one-sided) | DR tag: ≥800mm |
Mini pencil:≥900mm | |
Midi pencil:≥1100mm | |
Large pencil:≥1300mm |
Accessories and Protection Range
Accessories: | Leopard-II-1 protection range for one side | Leopard-II-1 protection range for one channel |
DR label | 800-900mm | 1600-1800mm |
25 ferrite small pencil tag | 950-1050mm | 1900-2100mm |
33 ferrite mid pencil tag | 1100-1200mm | 2200-2400mm |
39 ferrite mid pencil tag | 1200-1300mm | 2400mm-2600mm |
45 ferrite big pencil tag | 1400mm-1500mm | 2800mm-3000mm |
Advantage
● easy debugging - it can be debugged by using the remote control without mastering professional knowledge.
● ultra wide protection - on the premise of avoiding false alarm, both soft label and hard label have a long detection distance. If the Chinese Dr label is used, the effective distance on one side of the equipment can reach 90cm and the channel width is 1.8m.
● after sales maintenance - each motherboard is professional and well made
Our Services/Warranty
As a professional manufacturer, we provide the following services:
1. Very low price
2. Three year warranty and lifelong maintenance
3. Guarantee delivery time.
4. Ensure the quality and complain.
Friendly Tips
If you are interested in the latest ultra long distance detection EAS security system, please fill in your detailed requirements in the space below. We will reply you within 2 hours.
