Supermarket Automatic Sealing Machine

 A,Precautions for nailing of sealing machine

1. When installing the row of nails, the first row of nails shall be directly sent to the bottom of the machine head to avoid nail jamming

2. When the row nails are installed into the row nail bin, ensure that each row of nails falls to the bottom of the row nail bin

3. Empty nails shall not be allowed in the nail row bin, and there shall be nails in the nail row bin at all times

4. The maximum number of nails in the row nail bin is 3000, and the limit in the row nail bin is the maximum, about 1000

5. Determine the remaining number of nails in the nail bin. You can judge the remaining number of nails in the nail bin according to the remaining length of the nail pusher

B,Function introduction of sealing machine

1. After the installation of row nails is completed, first change the (mode switching) key into the (manual binding) key, (mode switching) needs to be pressed for 3 seconds. If you just start binding nails, just press the (stop / back) key to return the machine to zero. After pressing the (manual binding) key again, the machine will bind normally, and then switch (mode switching) to (automatic mode) to bind normally.

Counting function of binding machine, long press for 3 seconds to clear the data

C,Troubleshooting and maintenance of sealing machine

1. In case of nail jam, press the (mode conversion) key to convert (automatic mode) to (manual mode) and press (back / stop) to return the machine to zero. Press the (manual binding) key again to see if it can be sealed smoothly. If not, it is necessary to take out the nail row bin and take out the stuck nail row. The method is as follows:

2. First loosen the four white screws of the stapling bin, take out the stapling bin, take out the waste of the stapling bin with pliers, and then install and fix the staples. Press the (manual binding) key to quickly feed the staples in place. After the stapling port is smoothly out, long press the 3-second (mode conversion) key to convert it to automatic mode, and it can be used normally

3. After 100000 times of use, the machine head needs to be oiled, iron powder and sundries removed for routine maintenance, so as to increase the service efficiency and service life of the product.

4. Parts need to be replaced after 2.5-3 million times of use.

5. Product size: 21 * 26 * 39cm, weight:6kg.

6. Nail specification: 8W nails 1 box (20 boxes), weight 8kg.

Material: Iron length: 29mm

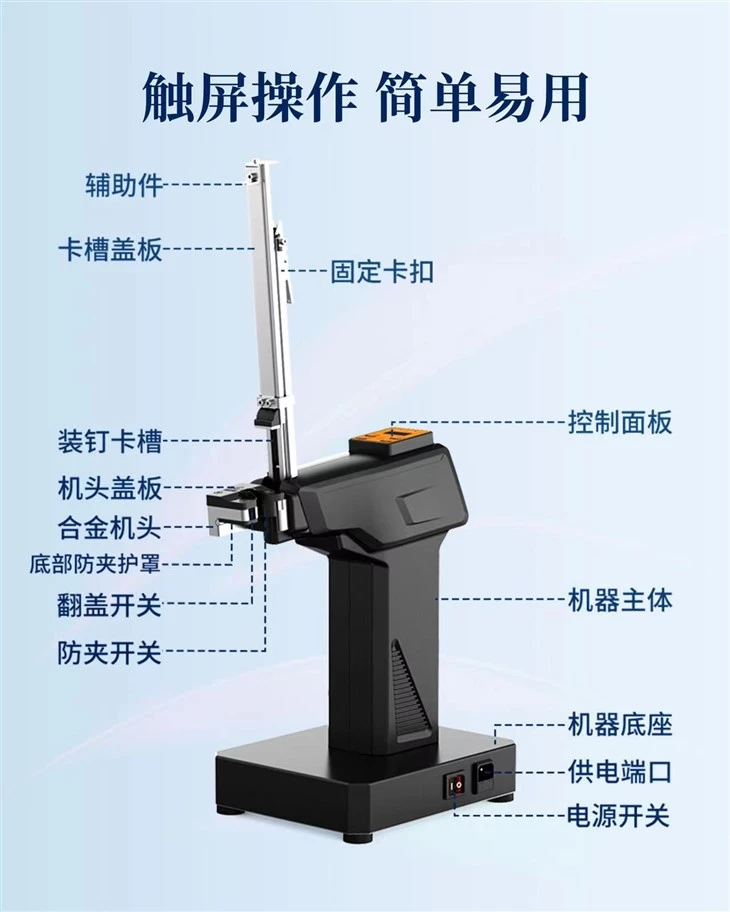

D,Key panel diagram and function introduction

1. Manual binding: press this key to facilitate rapid feeding and test whether the machine operates normally

2. Stop / back: press this key once in case of a nail jam, and the equipment will return to the zero position. Press it twice quickly to stop the machine to the position you want to stay

3. Mode switching: long press for 3 seconds to switch between manual mode and automatic mode

4. Count reset: press and hold for 3 seconds to reset the data
