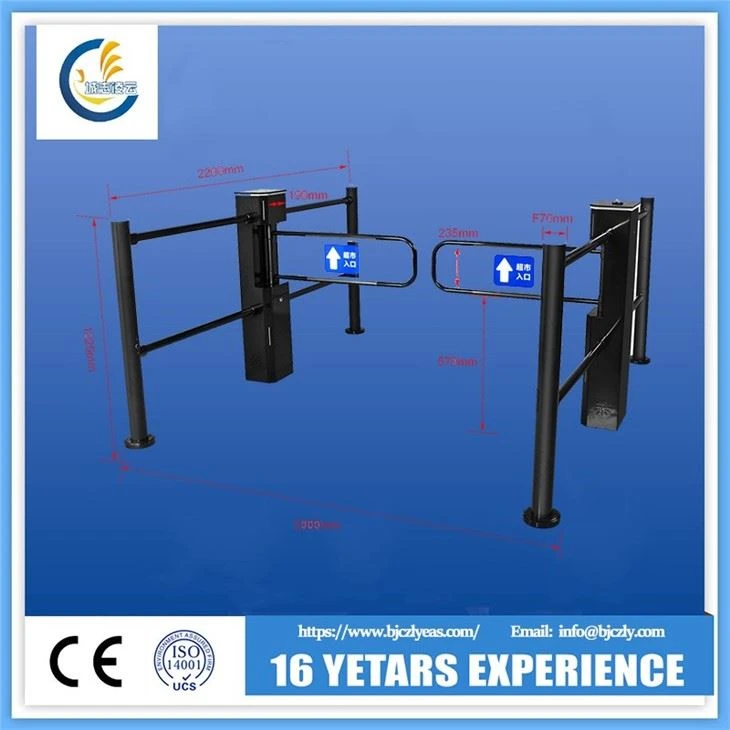

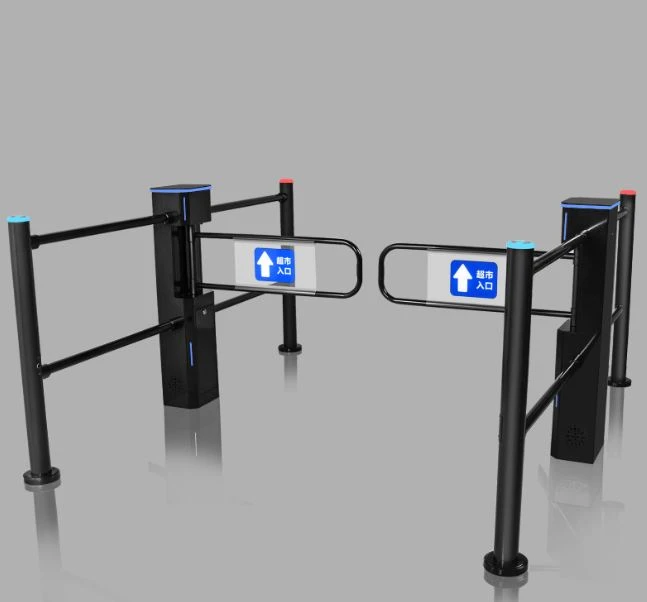

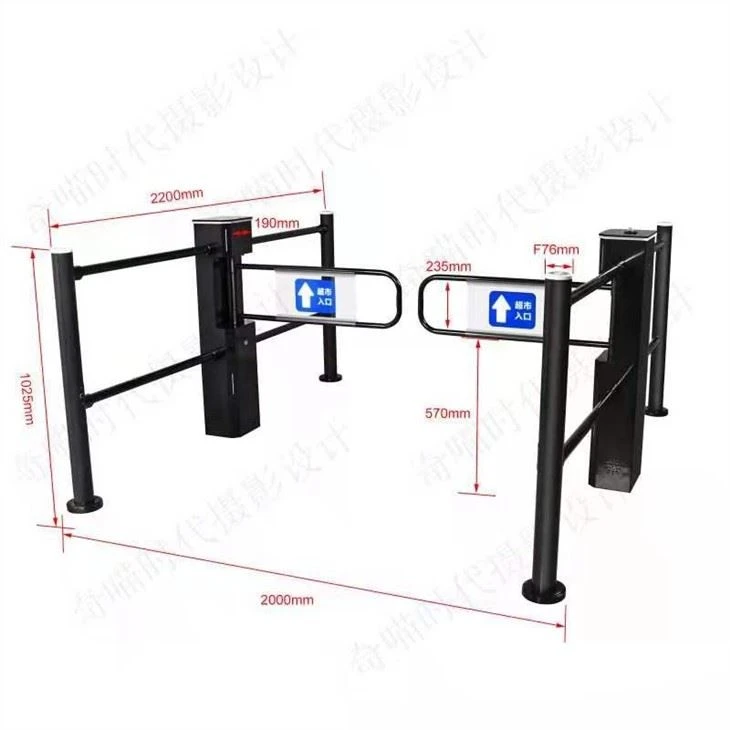

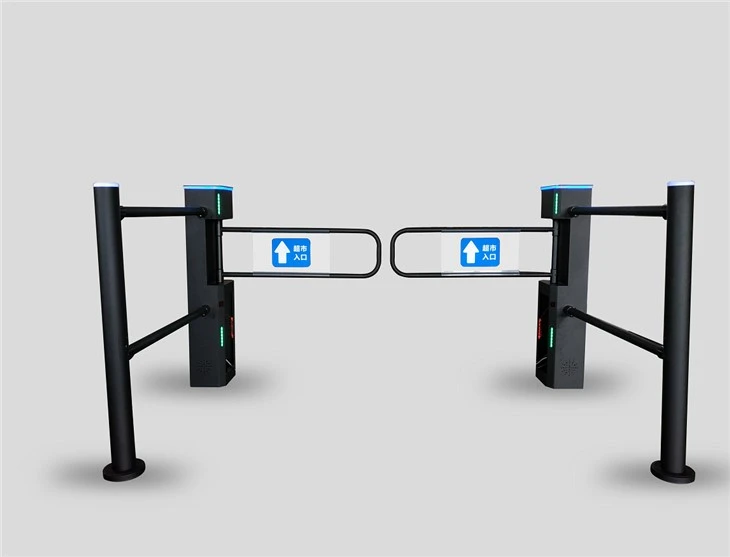

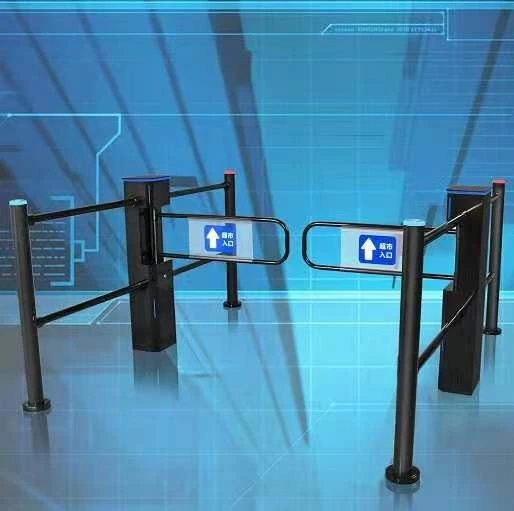

Supermarket Black Radar Automatic Induction Swing Door, Metal, Microwave

Connection specification for brushless servo control system

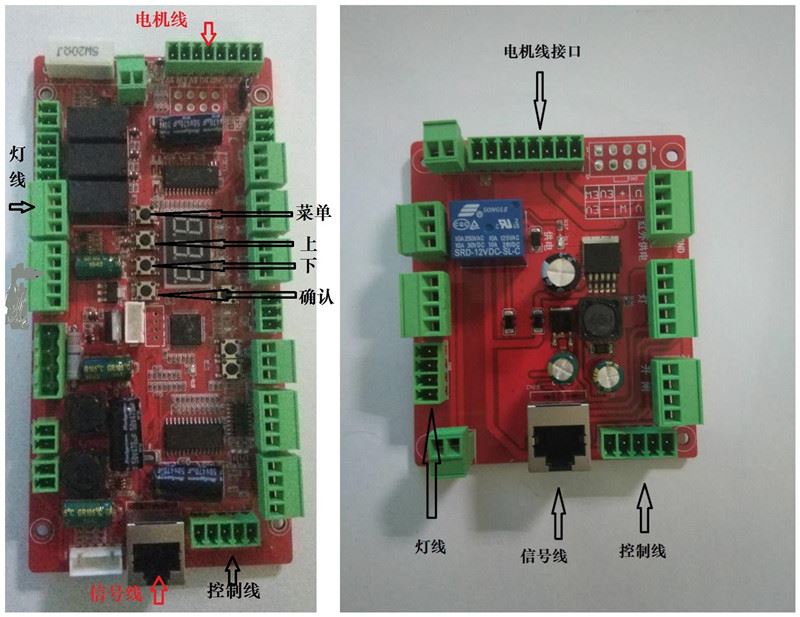

-Main board wiring diagram

-Sub board wiring diagram

Functional features

It has the function of fault self detection and alarm sound prompt, which is convenient for maintenance and use.

2 can be connected to any control device, output control signal or button or remote control to realize one-way flow control.

3. Automatic reset function: after each swing of 90 + degrees, the system will automatically cancel the right to pass and return to the initial position if the detected person and object pass, that is, automatic reset, or fail to pass within the specified time (time delay adjustable).

4 lighting indication: high brightness traffic indicator to guide traffic.

5 fire safety: it can be connected with the fire alarm system signal to realize the constant opening of the gate.

6 alarm function: when the illegal intrusion, automatic alarm.

7 adjustable speed: the opening and closing speed of the rocker arm can be adjusted according to the actual needs of users.

8 industrial level arm control system, adding many multi-function digital setting, encryption and automatic reset functions.

9 anti reverse function: in the process of swing arm reset, if the swing arm is reversed by external force, the swing arm will automatically start the reverse thrust and give an alarm sound. When the external force disappears, it will automatically return to the original state and resume traffic.

10 automatic protection function: when the external force prevents the swing arm from moving normally and the external force is continuous, the system will automatically detect the automatic protection and enter the sleep state after 20 seconds. After the next normal signal is input, the gate will automatically return to normal.

11 multi level anti-collision buffer function: when illegally overtaking or punching, the brake lever buffers the corresponding angle and starts the real-time reverse thrust, at the same time, it starts the alarm, so as to realize humanization, prevent injury, and greatly reduce the mechanical damage caused by frequent or continuous collision.

No one is on duty and on time: the rocker arm will open automatically when the power is off, and reset automatically when the power is on (traffic jam).

Technical parameters

Debug mode directory

1. Press the menu key for 3 seconds, L-1 will appear, and press the confirm key to enter the door closing time debugging mode

2 press the menu key for 3 seconds to display L-1, press the key to display l-7, press the confirm key to enter the gate cut-off switch debugging mode (see the table below for details)

Three. Press the menu key for 3 seconds to display L-1, press the key to display l-12, press the confirm key to enter the door tone debugging mode (see the table below for details)

4 press the menu key for 3 seconds, L-1 will appear, press the menu key, D-1 will appear, press confirm, voice prompt will push the rocker to the desired position, at this time you can adjust the rocker, adjust, press menu to confirm, press menu to exit (see the table below)
