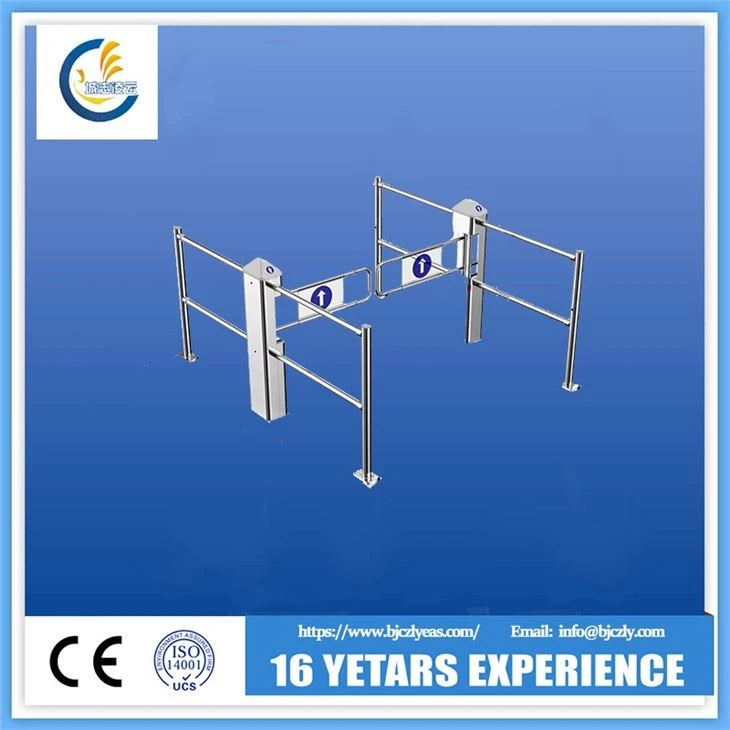

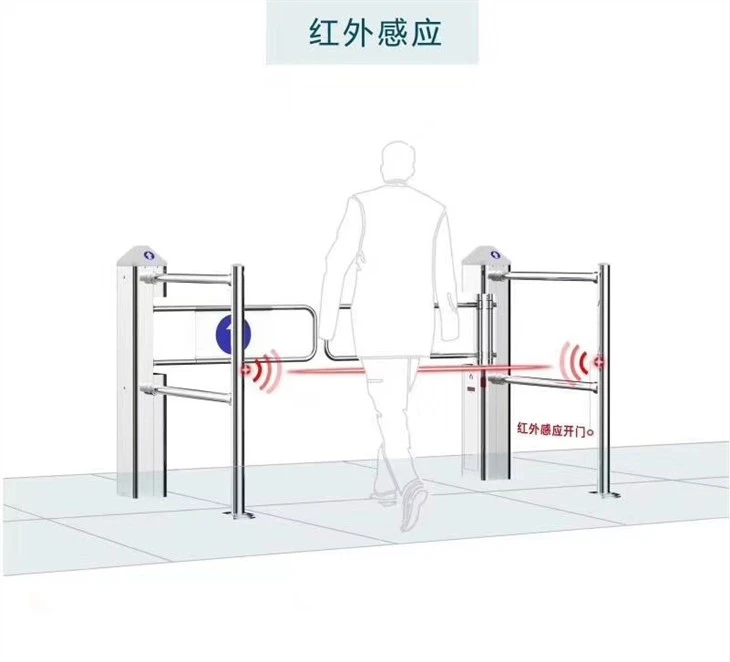

Supermarket Infrared Stainless Steel Induction Swing Gate

Specification for Brushless Servo Control System

- Mainboard wiring diagram

- Main board wiring diagram

Functional characteristics

1. It has the function of fault self-checking and alarm prompt, which is convenient for users to maintain and use.

2. Can be connected to any control device output control signal or button or remote control to achieve single-way control traffic.

3. Automatic reset function: after each swing 90 degrees, and detect the passage of people and objects, that is, automatic reset, or in the specified time (delay multi-file adjustable) not pass, the system will automatically cancel the right to pass and return to the initial position.

4. Lighting indication: high brightness traffic light status indication to guide traffic.

5. Fire control input: can be connected with fire alarm signal to achieve constant gate opening.

6. Alarm warning function: when illegal traffic or gate, automatic alarm warning.

7. Speed adjustable: the swing arm open and close the speed of multi-level adjustable, users can be set according to the actual needs.

8. A new generation of industrial-grade ARM control system, adding multi-function digital settings, encryption and reset functions.

9. Anti-reversion function: in the process of resetting the swing arm, if the external force reverses the swing arm, the swing arm automatically starts the reverse thrust and sends out an alarm, and when the external force disappears, it automatically returns to zero to resume traffic.

10. Automatic protection function: when the external force prevents the swing arm from moving normally, and the external force is continuous, the system will automatically detect 20 seconds after automatic protection and enter the dormant state. The next legal signal input, the gate will automatically return to normal.

11. Multi-stage anti-collision buffer function: when illegally passing or punching, the brake rod buffers the corresponding angle and starts the immediate reverse thrust, and starts the alarm at the same time, which greatly reduces the mechanical damage caused by frequent or continuous collision while realizing humanized anti-harm.

12. Unmanned duty: power-off swing arm automatically open, power-on automatic reset (blocking traffic).

Technical parameters

Debug Mode Entry Description

1. Press menu key 3 seconds, appear L-1, press confirm key, enter gate closing time debugging mode

2. Press menu key 3 seconds, appear L-1, press key until appear L-7, press confirm key, enter gate power off door debugging mode (see table below for details)

3. Press menu key 3 seconds, appear L-1, press key until appear L-12, press confirm key, enter gate sound debugging mode (see table below for details)

4. Press the menu key for 3 seconds, appear L-1, press the key, appear D-1, press the confirmation, voice prompt to push the swing arm to the position you want, this time you can adjust the swing arm, adjust, press the menu to confirm, Press the menu to exit (see table below)

Users can set up debug code tables
