Hidden Buried Am Anti-theft Antenna ABS Plastic
Long detection EAS security system
Description
● High quality ABS meterial
●The detection height range of am hard label is 1200mm-2000mm, and the maximum distance can reach 2400mm.
● Very stable function and strong anti-interference.
● Debugging directly with remote control.
Specification
characteristic:

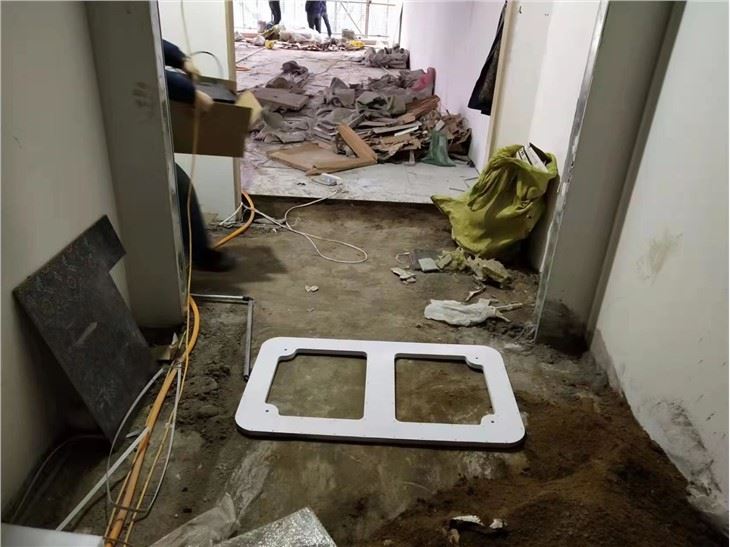

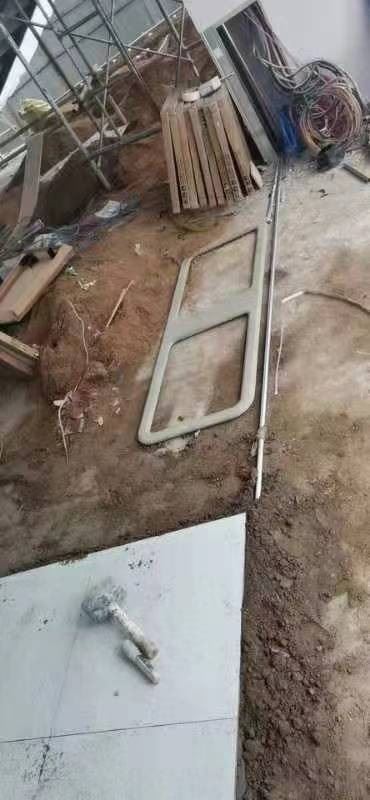

1. Hidden installation, giving customers more access and vision.
2. The system adopts mobile phone basic debugging, and the clerk can adjust the anti-theft device at any time.
3. Advanced self-test function, DSP chip imported from Texas Instruments.
4. It can automatically synchronize, filter the dry closing of the outside world and resist the interference of the elevator.
4. It can be debugged remotely by mobile phone, and the fault can be eliminated at any time.
Configuration: (cz-am3000a / b)
One host is normally equipped with one buried coil (including one host, one power box and one buried coil),
Form a standard protection channel with a protection width of 1.6m-2m.
One host can be equipped with two buried coils (including one host, two power boxes and two buried coils),
Form an ultra wide protection channel with a protection width of 3.2m-4m
One host can be equipped with three buried coils (including one host, three power boxes and three buried coils),
Form an ultra wide protection channel with a protection width of 4.8m-6m (this scheme is not recommended, and the three antennas cannot alarm at the same time)
Host: length 28.5cm * width 20.2cm * height 6.5cm
Weight: 3.6 kg
Frequency: 58khz
Working voltage: 220 V - 230 V
Power box: 28.3cm long * 20.2cm wide * 7.2cm thick

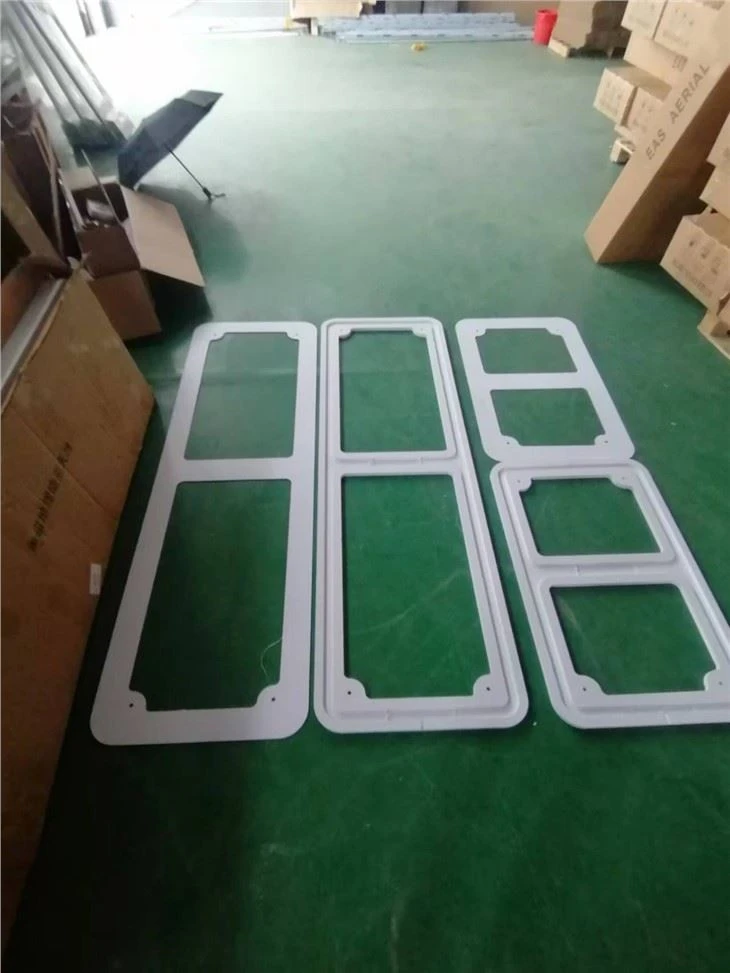

The size of the antenna is 158CM long * 57cm wide * 2.5cm thick
(the length of antenna can be customized for special environment and site)
Advantage
● Easy to debug---Providing the debugging tools based on Windows and Android App, using mobile phone App or PC through WIFI wireless debugging, simple and fast operation, remote real-time debugging can be
● Ultra wide protection---On the premise of avoiding false positives, both the soft labels and hard tags have a long detection distance. If using the Chinese Dr label , the effective distance on one side of the equipment can reach 80cm-90 cm, and the width of the channel is 1.6-1.8 meters realized through the cloud.
● After-sales maintenance---Each main board has a unique global ID. The IDs are uploaded to the cloud in the factory, can remotely monitor the working status of the device. The main board is encrypted individually and unauthorized persons cannot debug it without authorization
Our Services/Warranty
As a professional manufacturer, we provide follow services:
1.Lower price for sample home dermabrasion machine, Competitive prices for distributers
2. ONE year warranty and life time maintanance
3. In time delivery.
4. High Quality assurance.
Customer Show
WHY CHOOSE US
Express Delivery
PAYMENT
We accept T/T ,Western Union or Paypal before production
If buyers have any problems about payment , please contact us ASAP
SHIPPING
7-21 working days since payment receipt (based on actual quantity)
Tracking No. will be sent to you after delivery . And you will get every importantshipping status by email.
Friendly Tips
If you are interesting in Long detection EAS security system, please fill the below blank space your detailed requirements. We would reply you within 12 hours.
