Retail Security Tag System

Retail Security Tag System

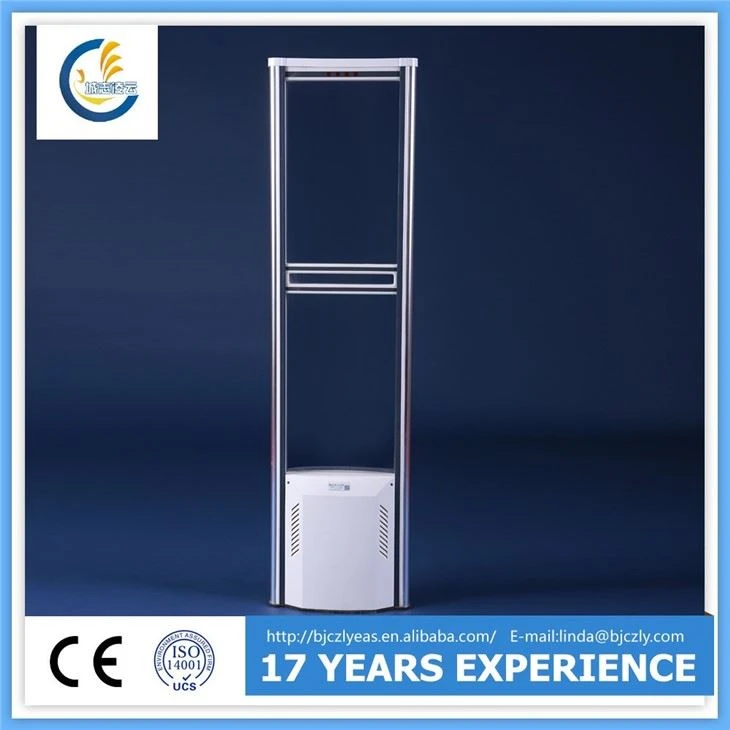

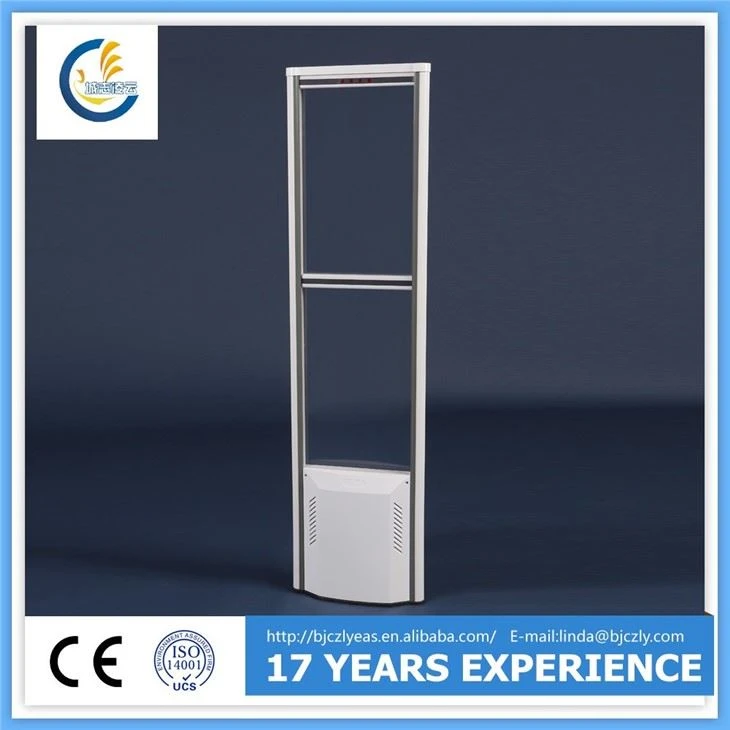

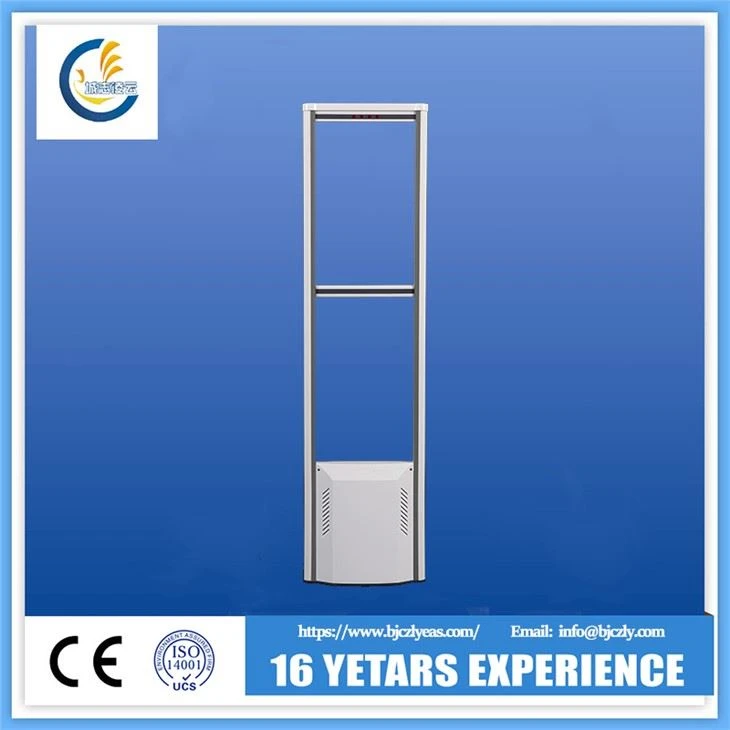

Our Acrylic AM system gate-Leopard IV is made of imported high -intensity acrylic material, with high permeability, high temperature resistance, higher density than others,No bending,no deformation,Perfect synchronization with different brands and different acoustic and magnetic systems
Send Inquiry
Product Details ofRetail Security Tag System

Supermarket Security Gates

Description

1. Super anti-interference. Don't worry about elevators, light boxes, spotlights, doll machines, distribution boxes, freezers, air conditioners and televisions.

2. No ground wire requirements. It's better to have a ground wire, and it's not required to have no ground wire. Some township supermarkets don't have to bother talking. (in principle, we still require independent power supply)

3. Material hard core. In order to save costs, all manufacturers adopt plastic injection molding appearance. However, those sincere people who are extremely paranoid about quality stubbornly choose aluminum alloy fasteners for several main products. (XL/UL)

4. Mobile phone debugging. At present, everyone has a mobile phone. I have one in hand. You can easily solve after-sales problems at any time, and leave professional things to professional people. (it supports domestic products, but the software does not support Apple phones)

5. Ultra wide protection. For domestic soft labels, one side detection can reach 0.8m-0.9m, and channel detection can reach 1.6-1.8m. For hard labels, that is infinite width. No matter how bad the site environment is, we promise: 1.0 meters, 2.0 meters on one side.

6. Independent mold opening. Each one is unique and pure. If similar, it is pure plagiarism.

7. The motherboard is high black. Power on for 5 minutes and 15 years. 24 hours of uninterrupted aging before leaving the factory. Each motherboard has a unique ID in the world, and the motherboard is encrypted separately. Unauthorized others cannot debug without permission.


Specification

Leopard-IV Technical Parameters:

Material

Acrylic

Antenna Size:

1557*395*45mm

Work Mode

Work without the controller

Frequency:

58kHz

Antenna weight:

Master:18KG Vice: 17.5KG

Input

24V AC+10% ,50/60Hz

Transmit pulse duration:

1.8ms Burst

Power fuse:

0.8A +1A


Accessories and Protection Range

Accessories:

Leopard-IV protection range for one side

Leopard-IV protection range for one channel

DR label

800-900mm

1600-1800mm

25 ferrite small pencil tag

950-1050mm

1900-2100mm

33 ferrite mid pencil tag

1100-1200mm

2200-2400mm

39 ferrite mid pencil tag

1200-1300mm

2400mm-2600mm

45 ferrite big pencil tag

1400mm-1500mm

2800mm-3000mm
